Ekko Sword - Arcane

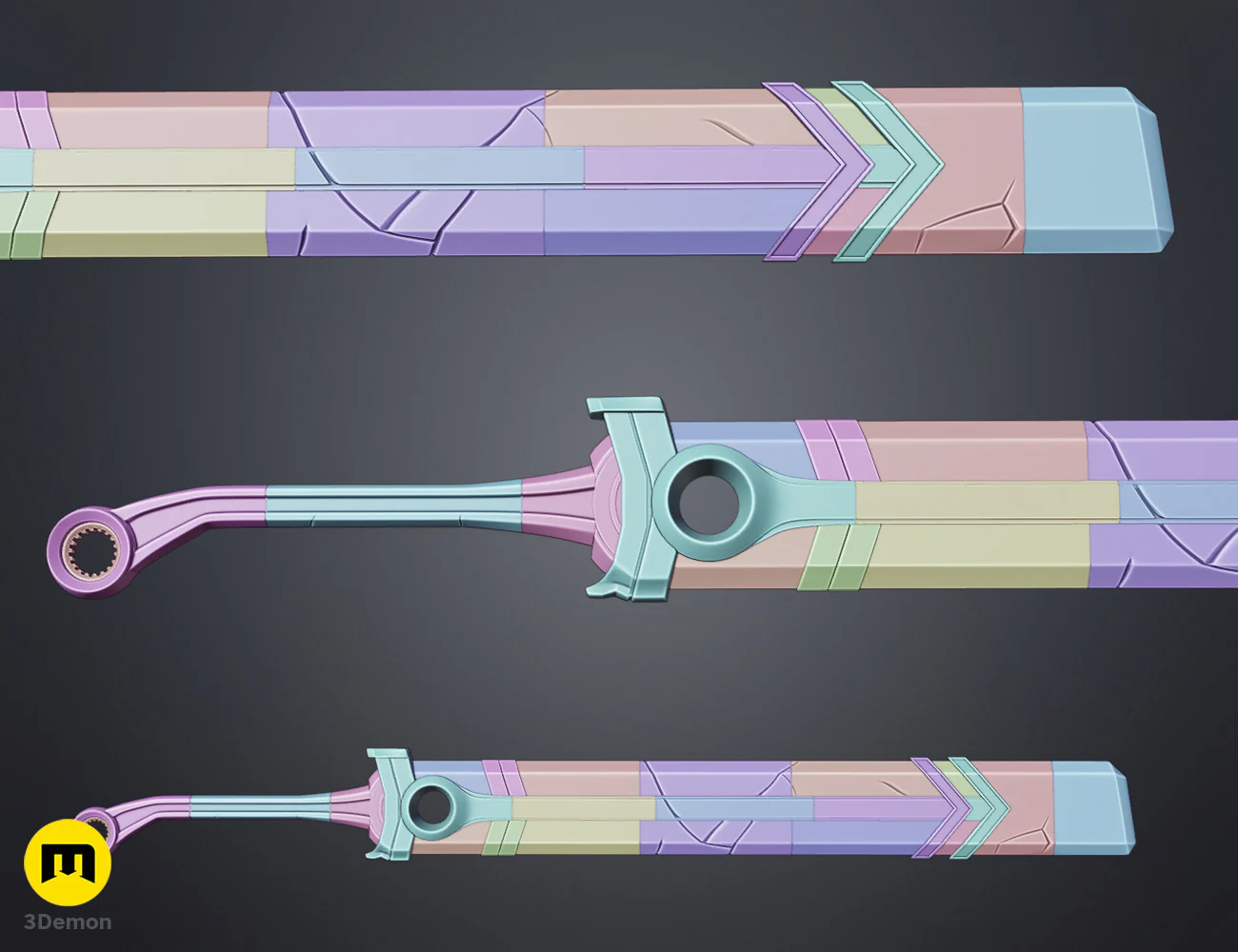

Digital 3D print files model of Ekko's Sword from Arcane. Designed as a cosplay prop or shelf display replica. Included space for wooden reinforcement dowels. Separated by color so no post-processing is needed - just 2 colors of filament spools. ✨

📦 Included Files

• STL (cut and pre-oriented for 200mm printer beds)
• STL (uncut for larger printers)
• OBJ file (for easy scaling)
• 3MF pre-supported, print-ready file

📏 3D Model Dimensions

• Width: 135 mm
• Length: 55 mm
• Height: 1277 mm (50.3 inches)

Feel free to scale the model to fit your needs. Learn more about sizing and scaling for cosplay here.

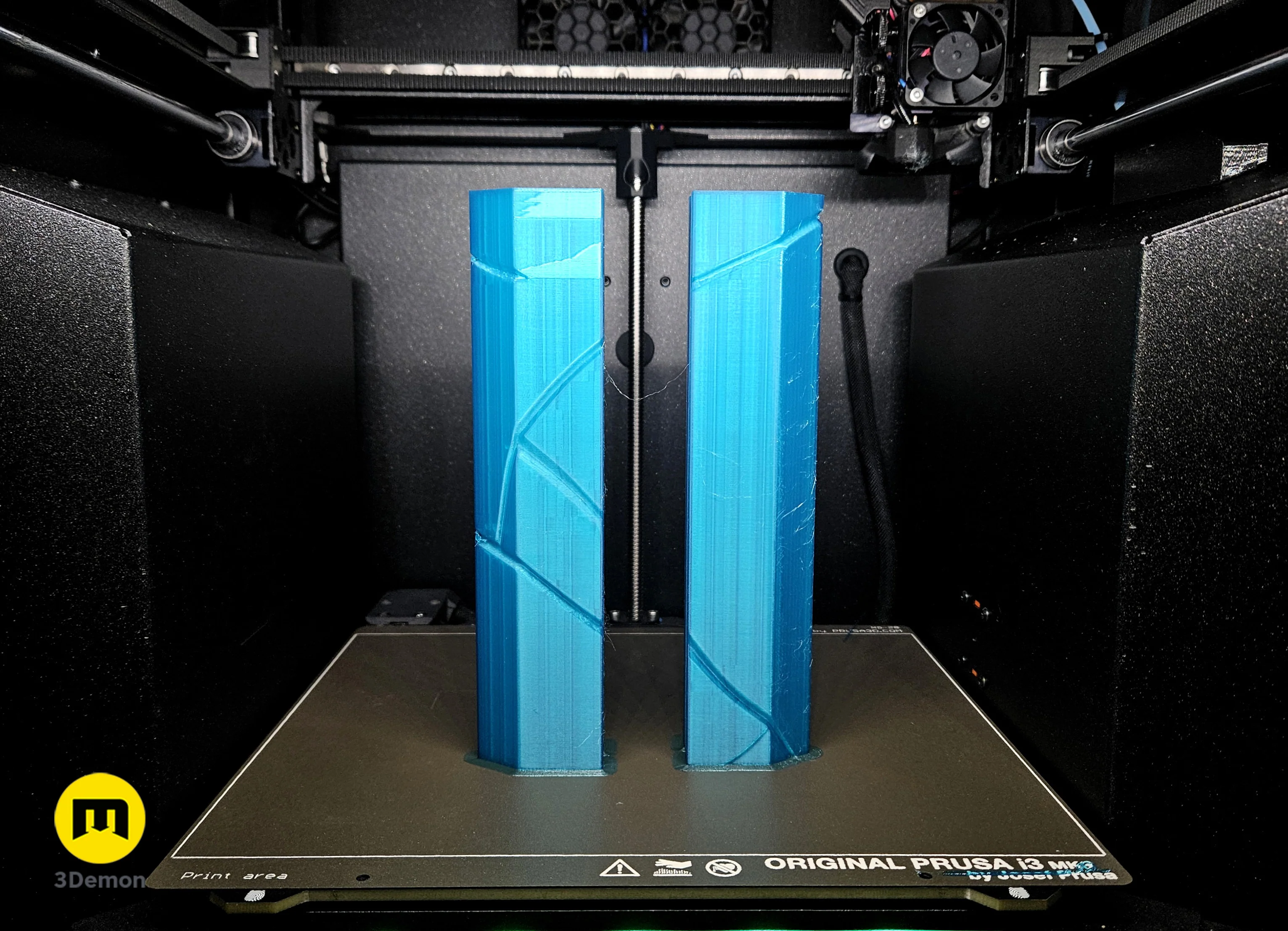

🖨️ Printer Settings

• Layer height: 0.15 mm
• infill: 10% gyroid pattern
• Supports: 30° organic
• Printing time: 25h blade, 28h gold parts
• Materials used: PLA Translucent Teal (Bambu) and Cairo Gold (Fillamentum)

Every printer is a little different, so think of these settings as a helpful starting point. No 3D printer? No problem! Search for your local 3D printing services.
We - and the community - would love to see how your project turned out! Please, share your make and tag us! 😊

🛠️ Assembly

Glue the parts together. Hex-pegs for easy alignment are included. For stronger joints, melt the seams with a soldering tool. You can insert 4 wooden rods for reinforcement: two rods with a 10 mm diameter and 825 mm length, one rod with a 10 mm diameter and 750 mm length, and one rod with a 5 mm diameter and 300 mm length.
🖌️ Here's our blog post tutorial on printing and painitng this prop for cosplay.

✨ This fan-made model was brought to life by 3Demon, a team of modeling and 3D printing enthusiasts based in Prague, Czech Republic. We’ve been creating 3D printable models for over a decade, from cosplay accessories to all sorts of interesting designs.
