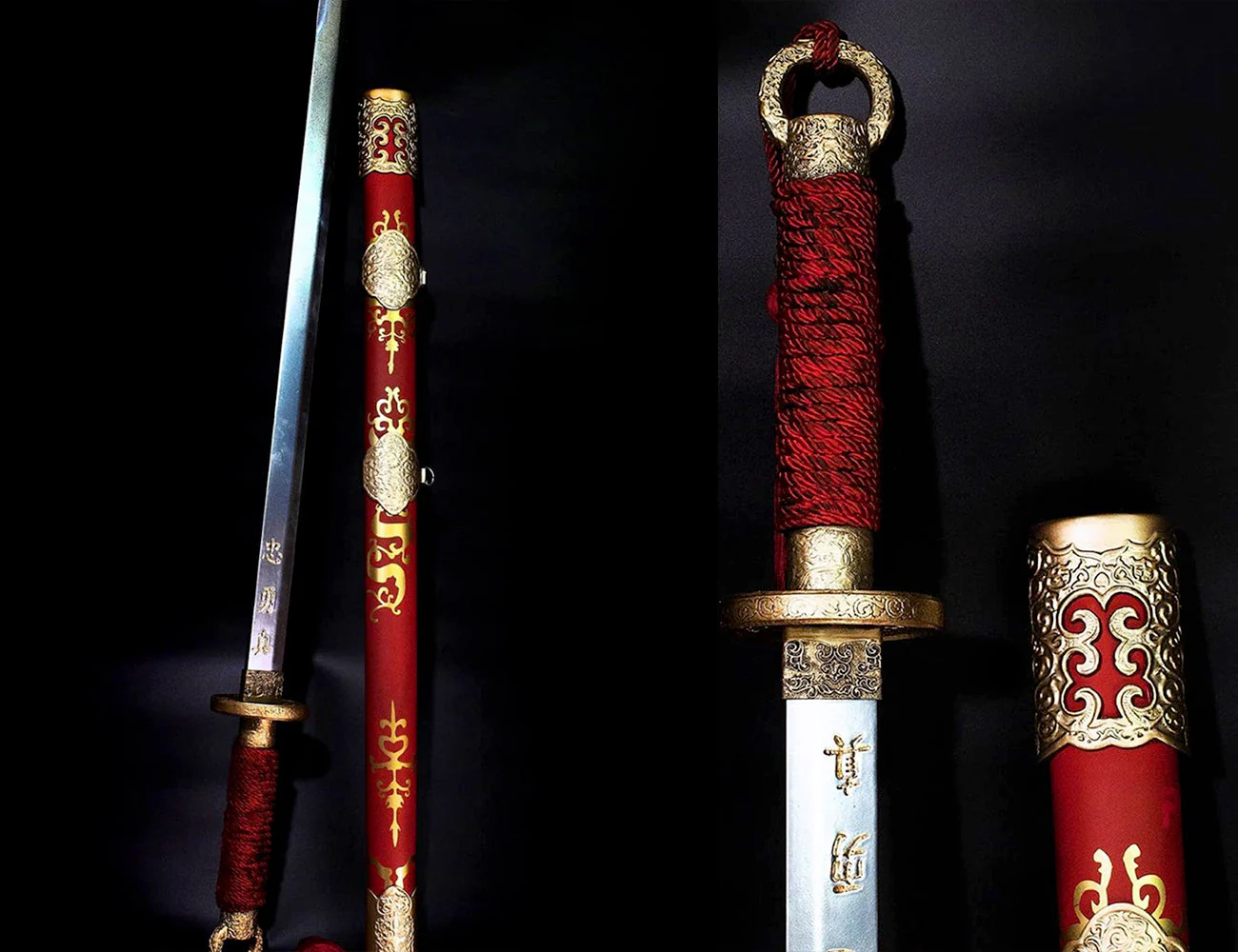

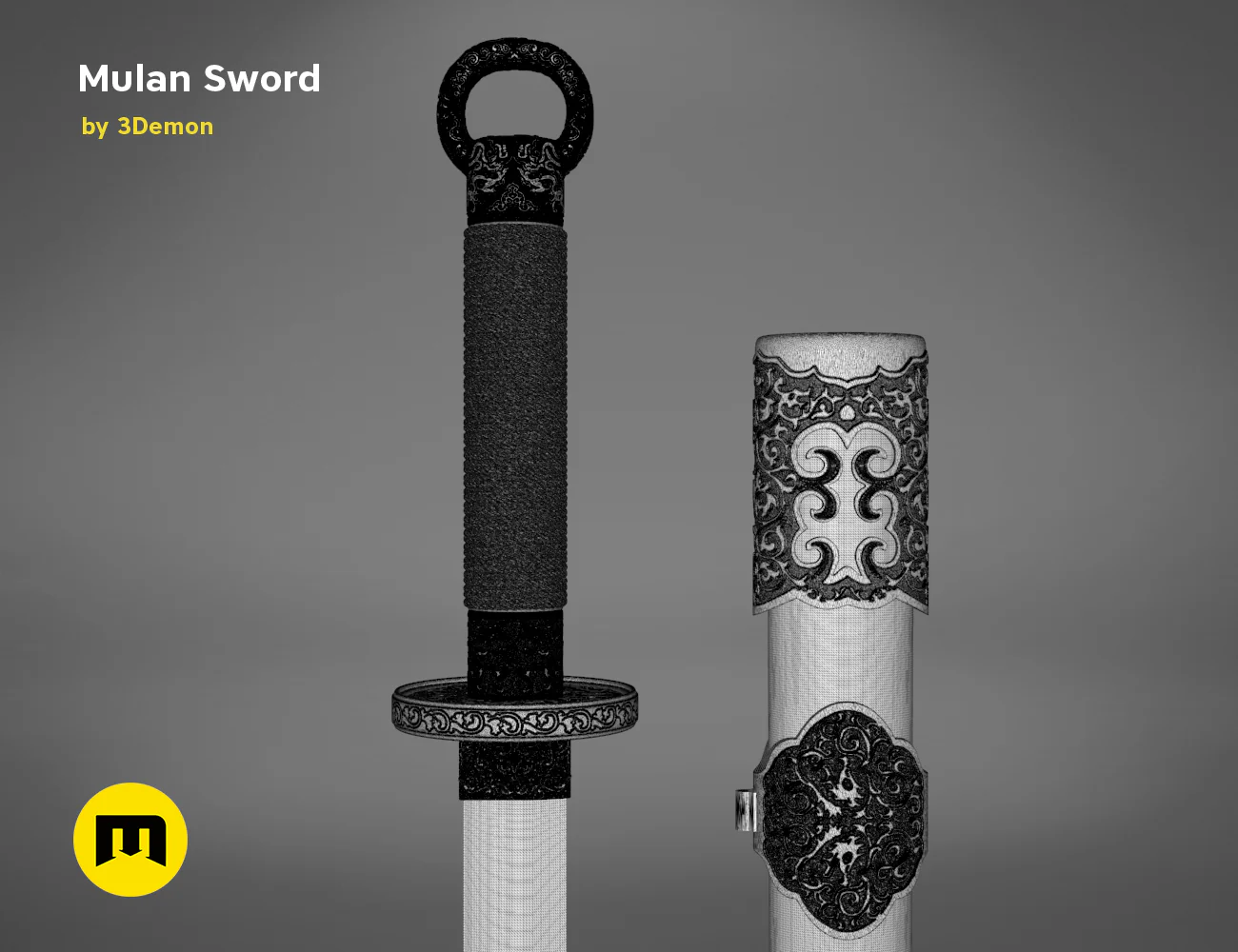

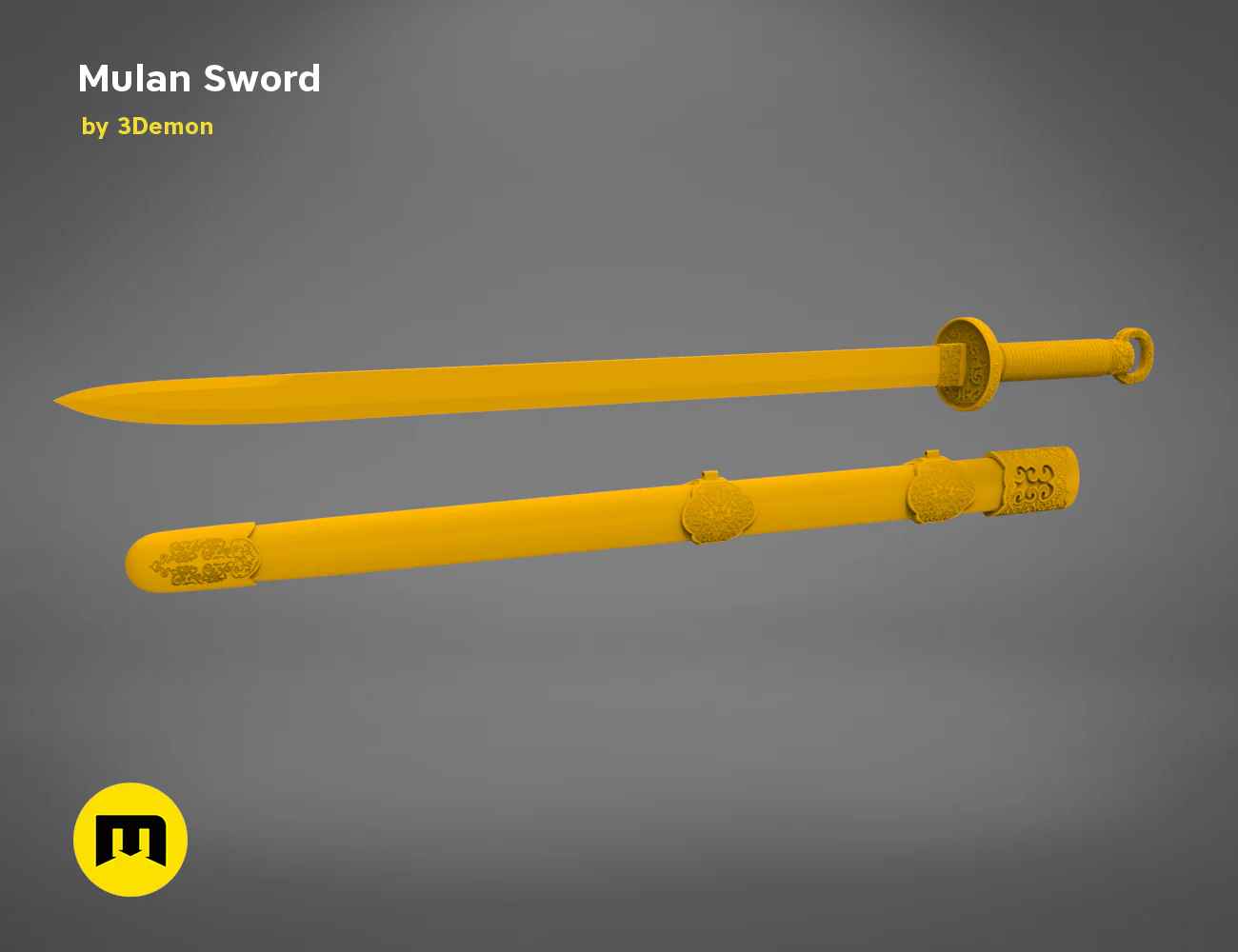

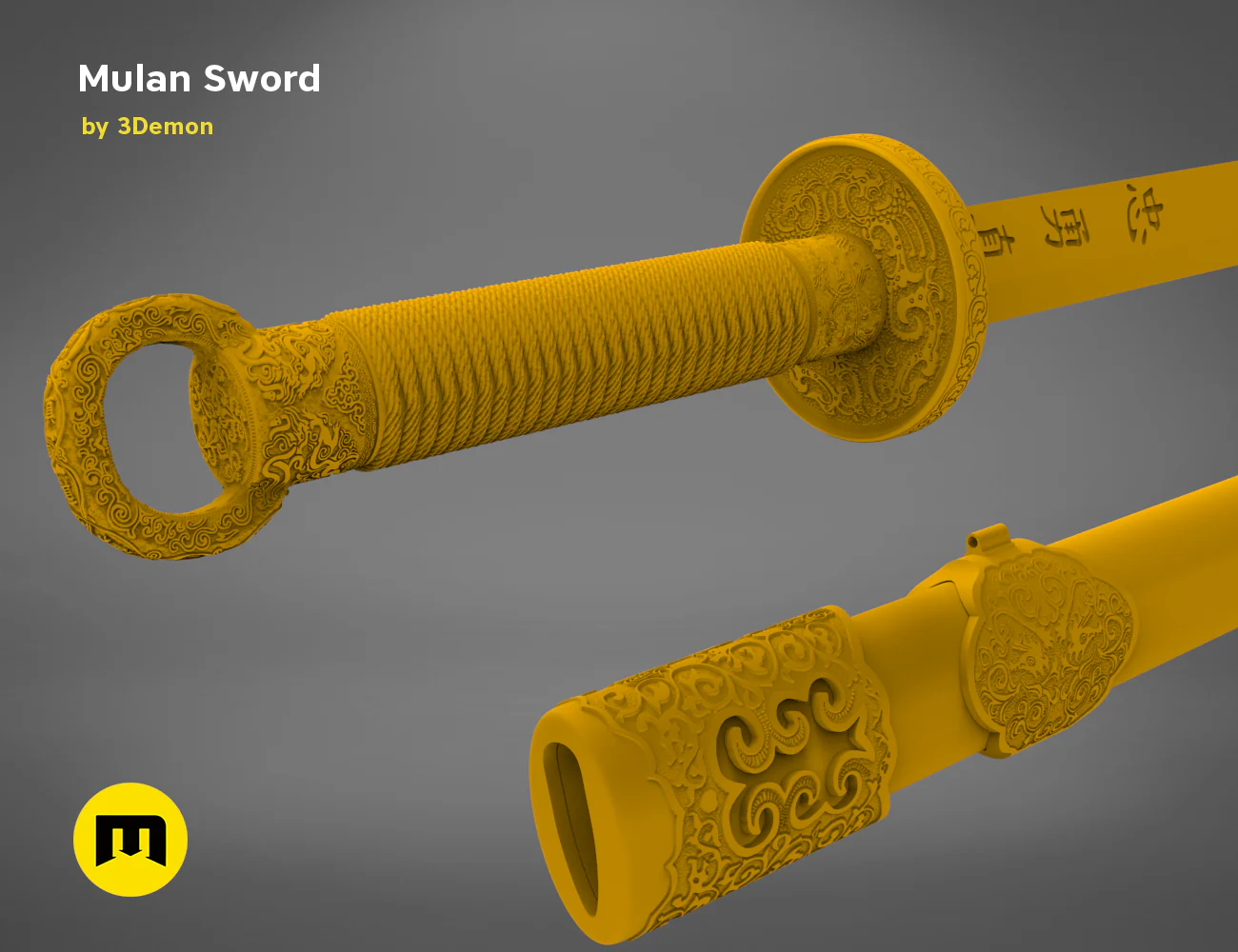

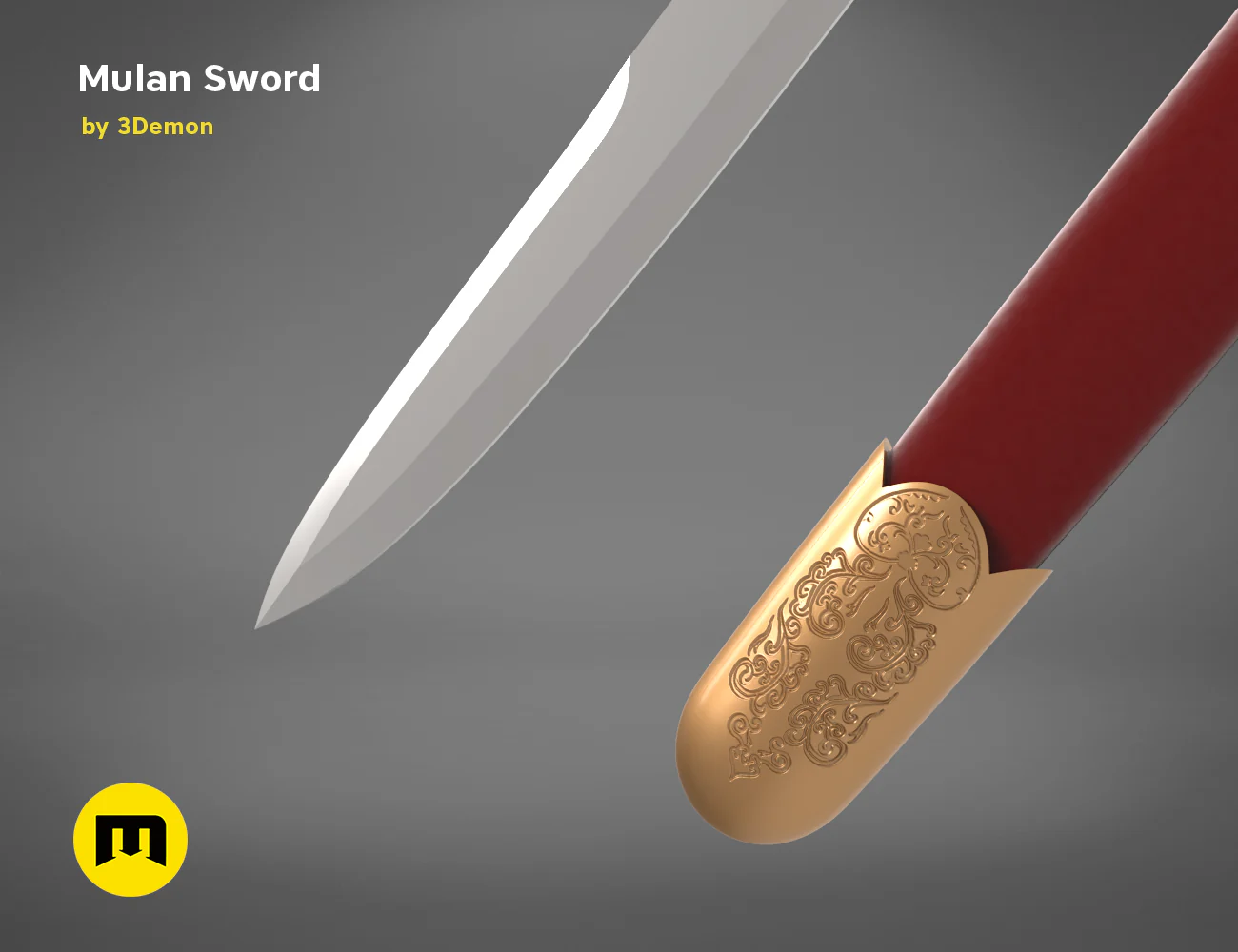

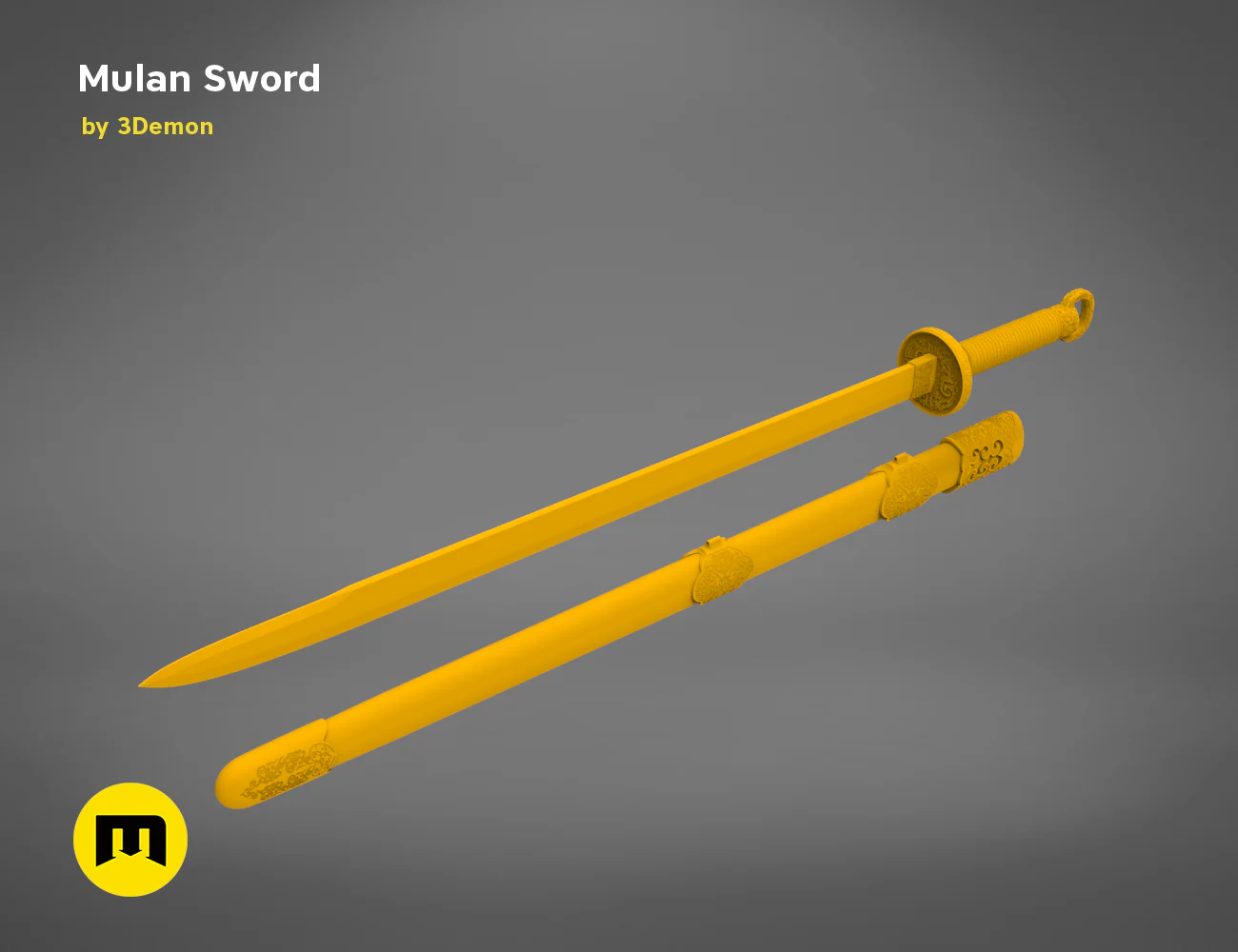

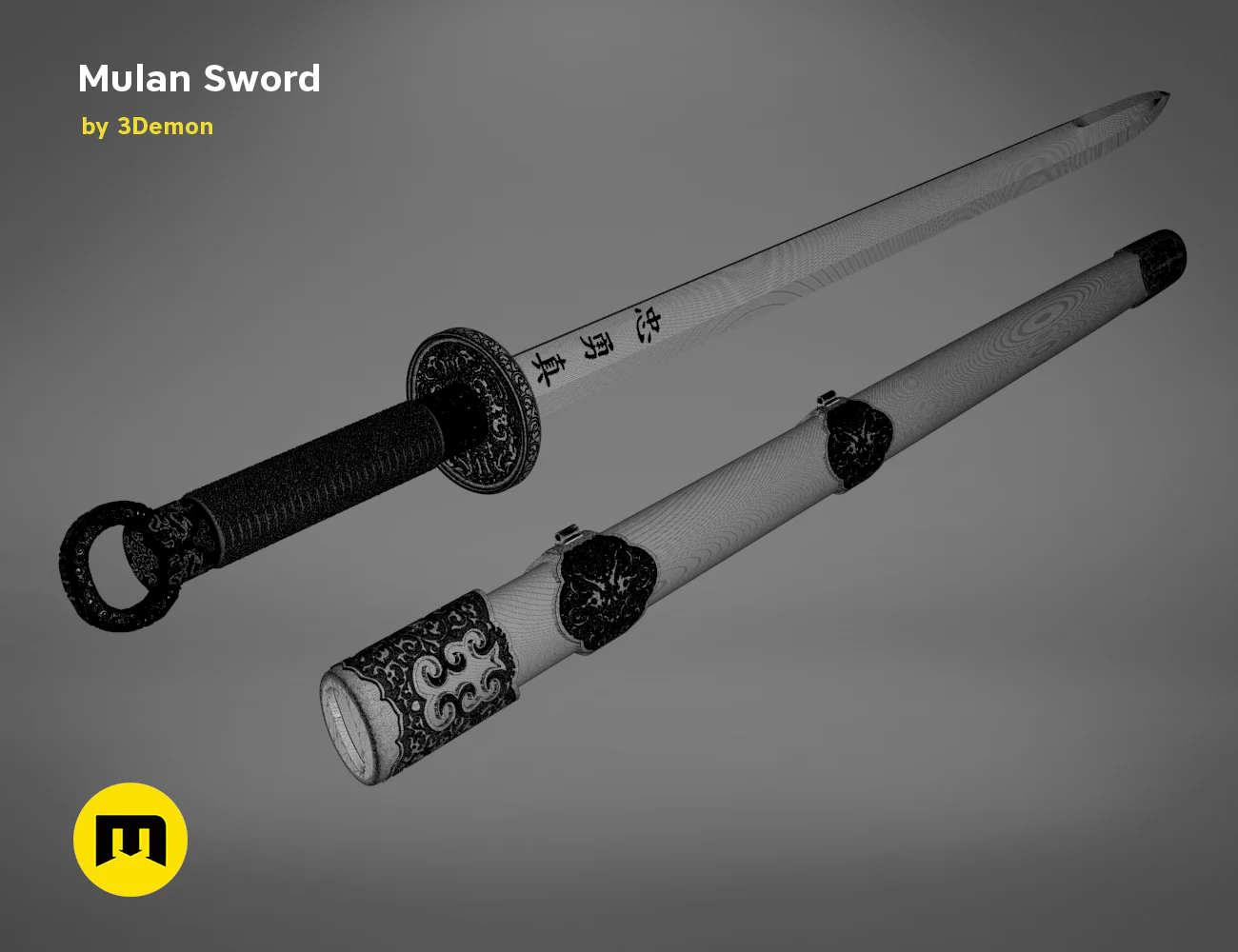

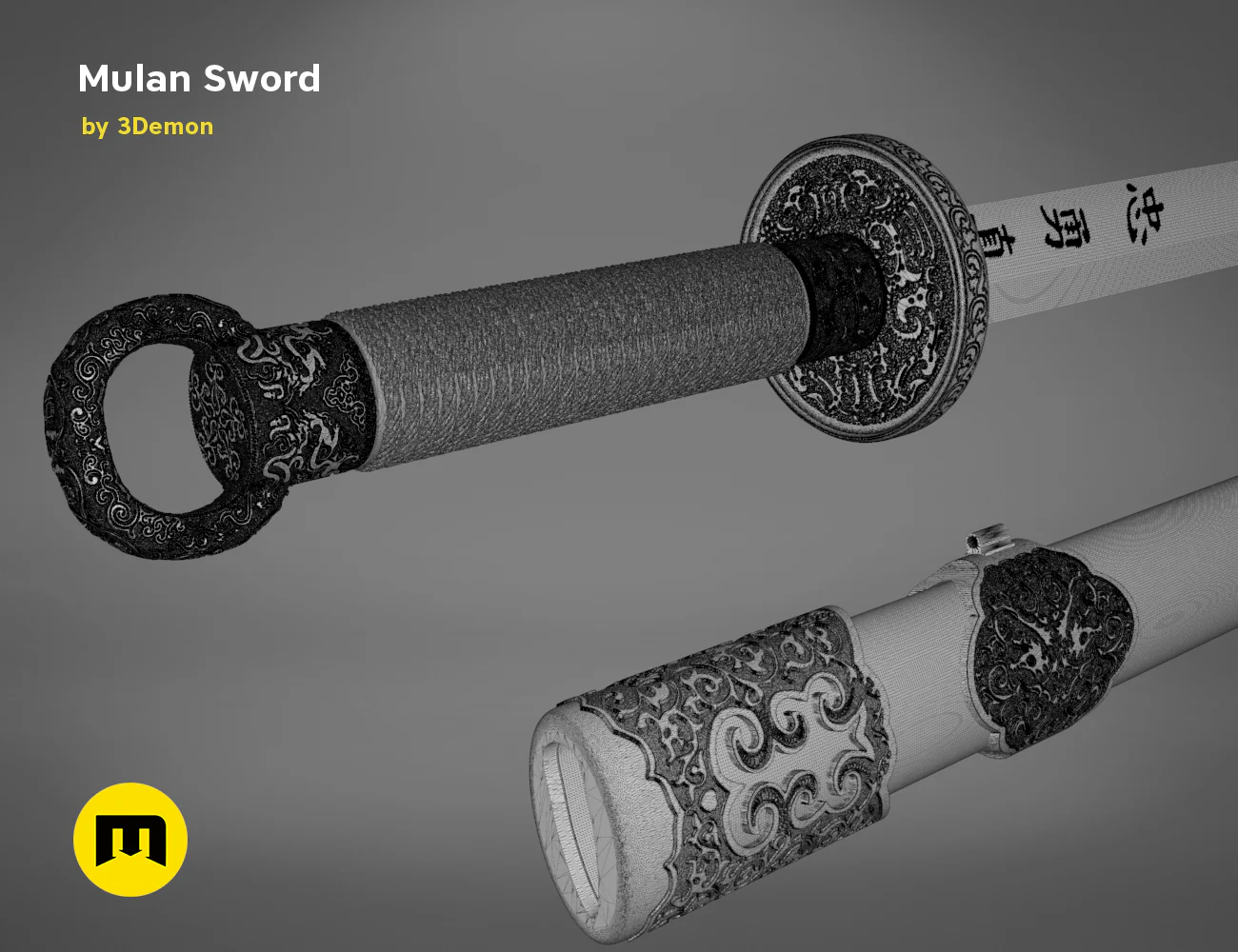

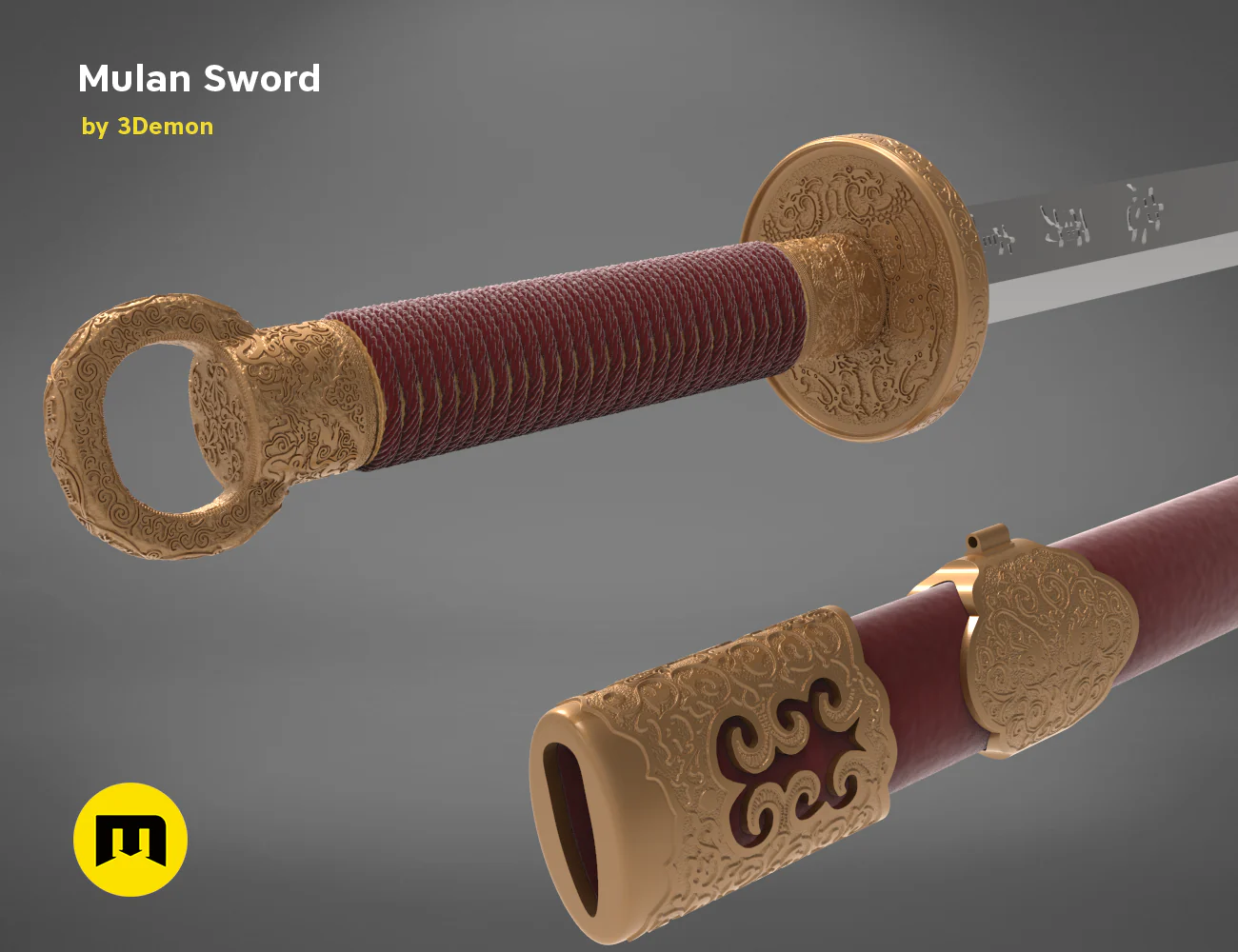

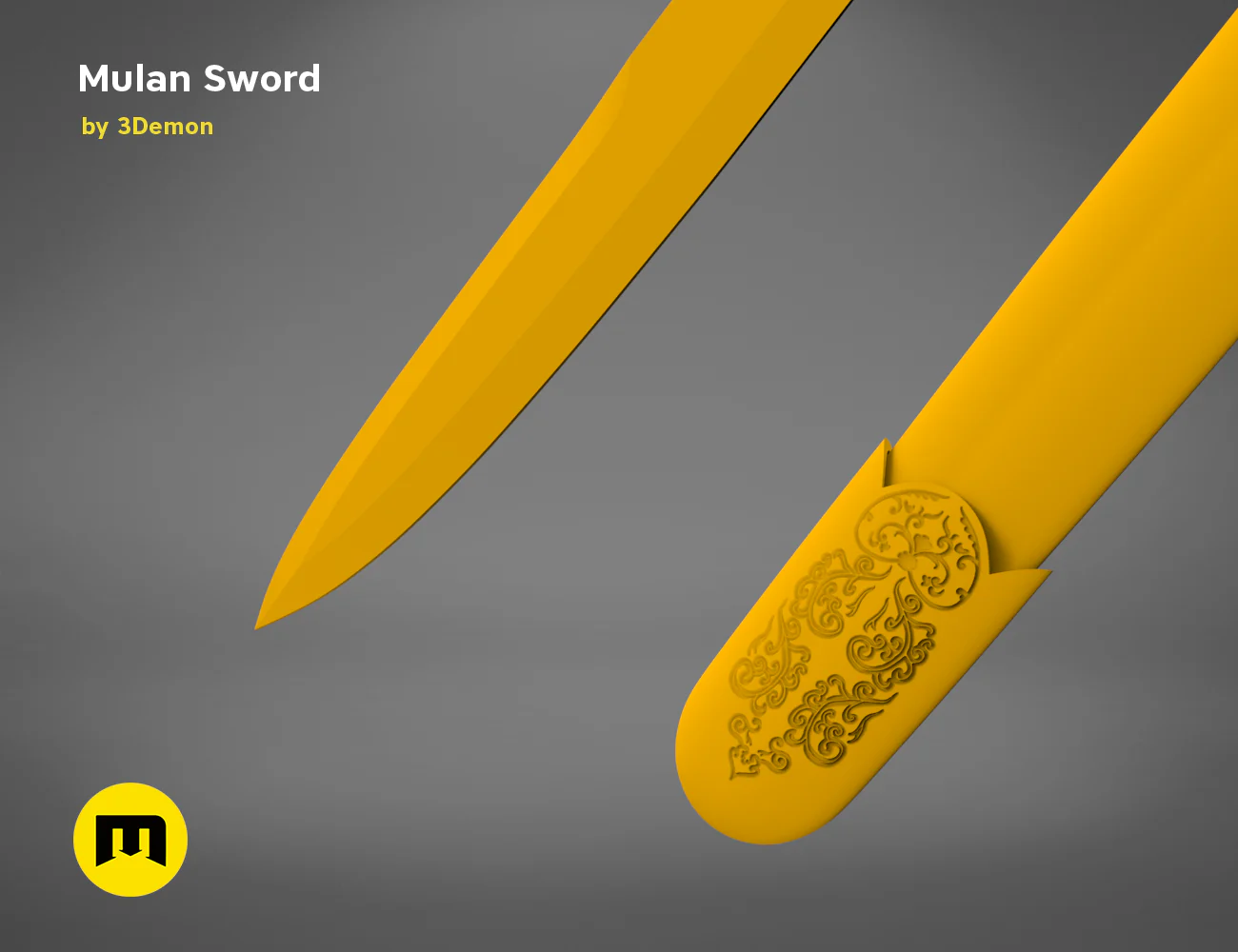

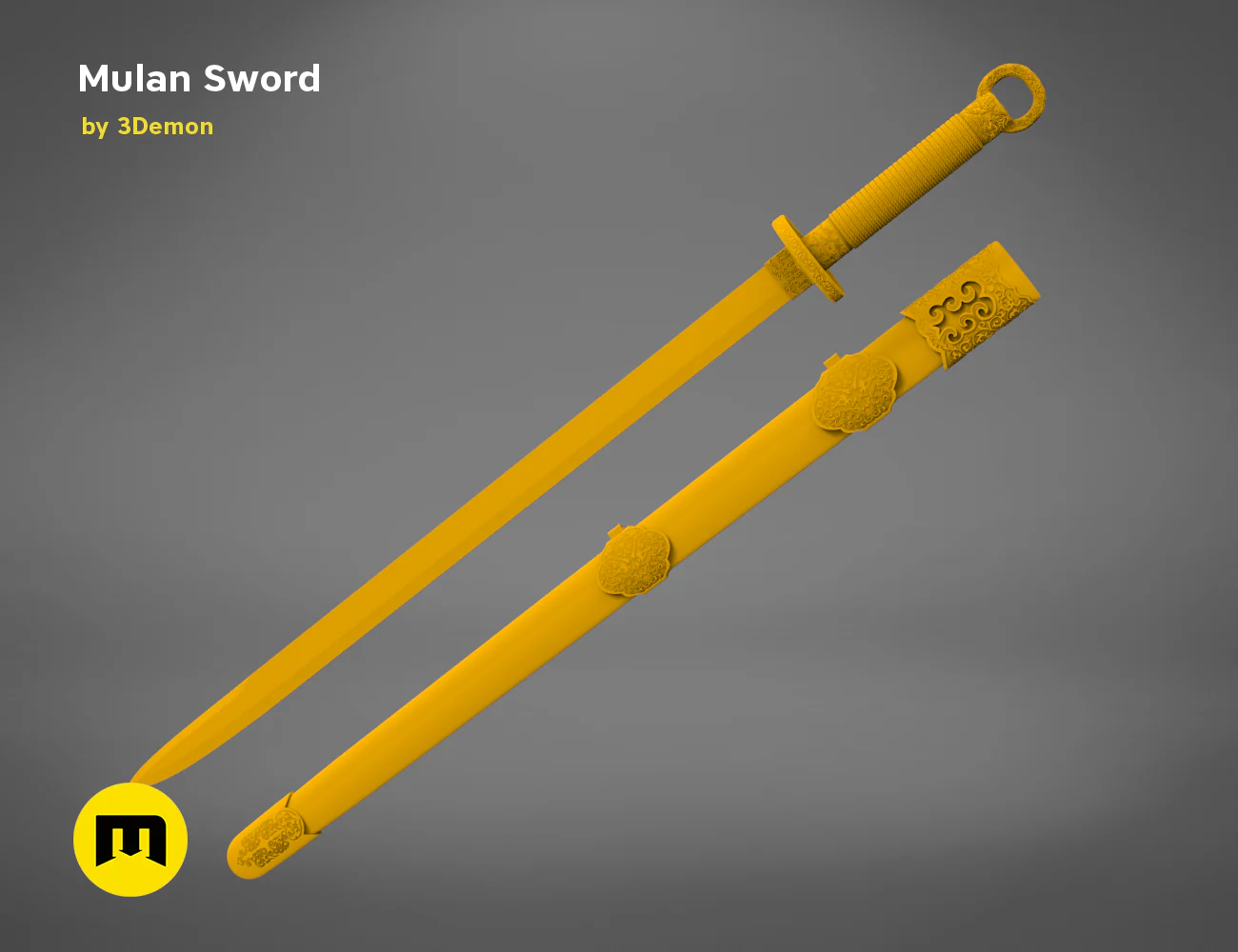

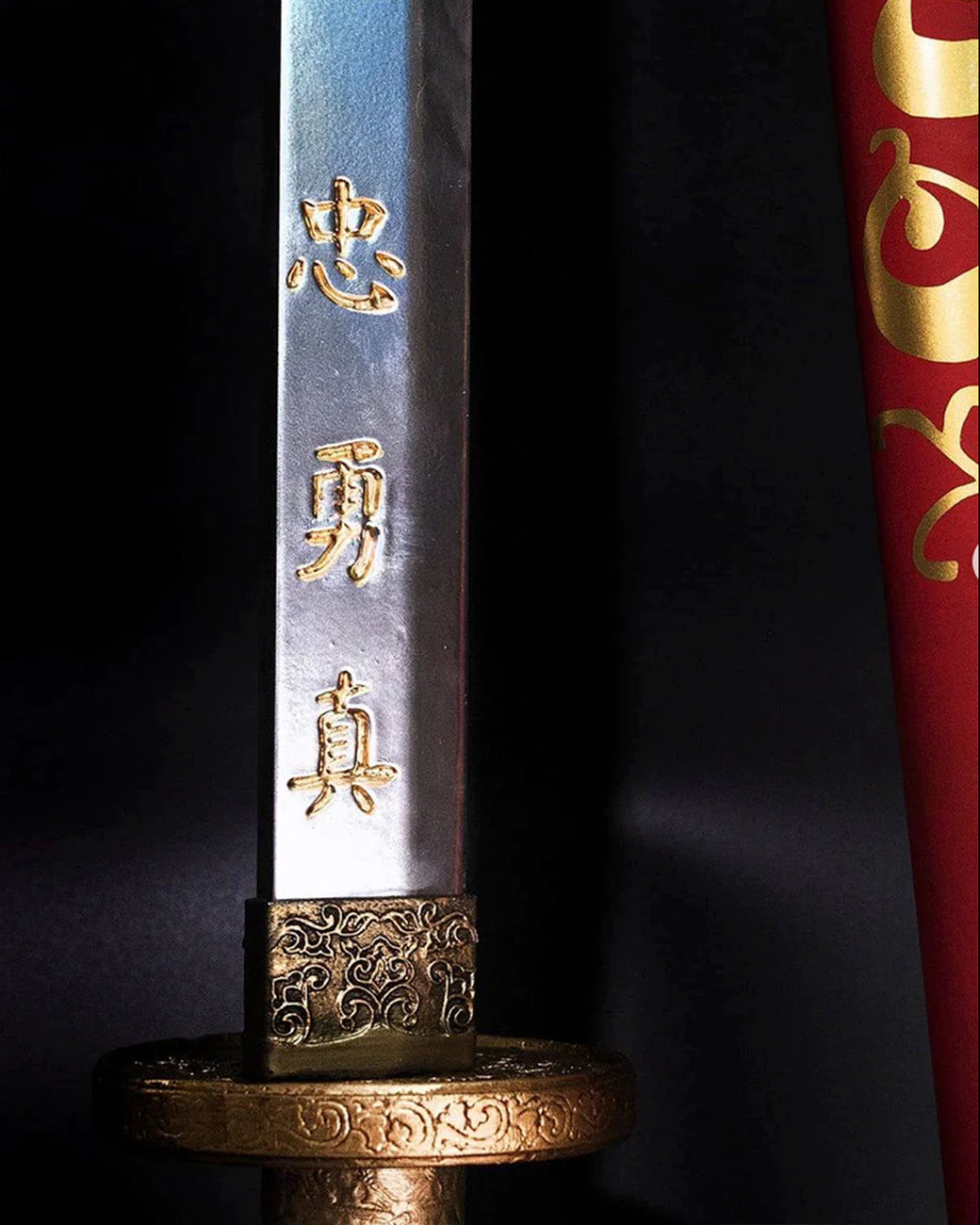

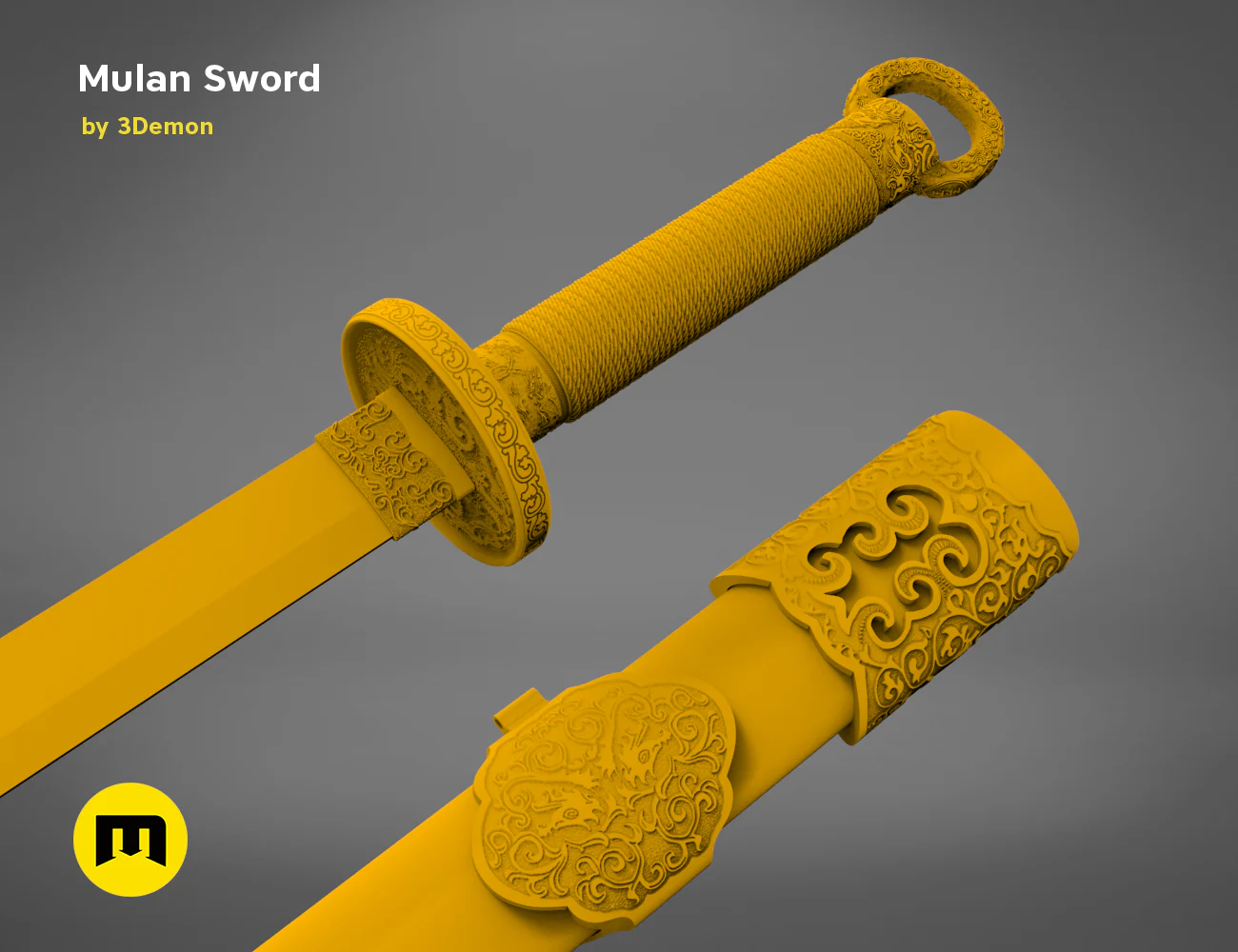

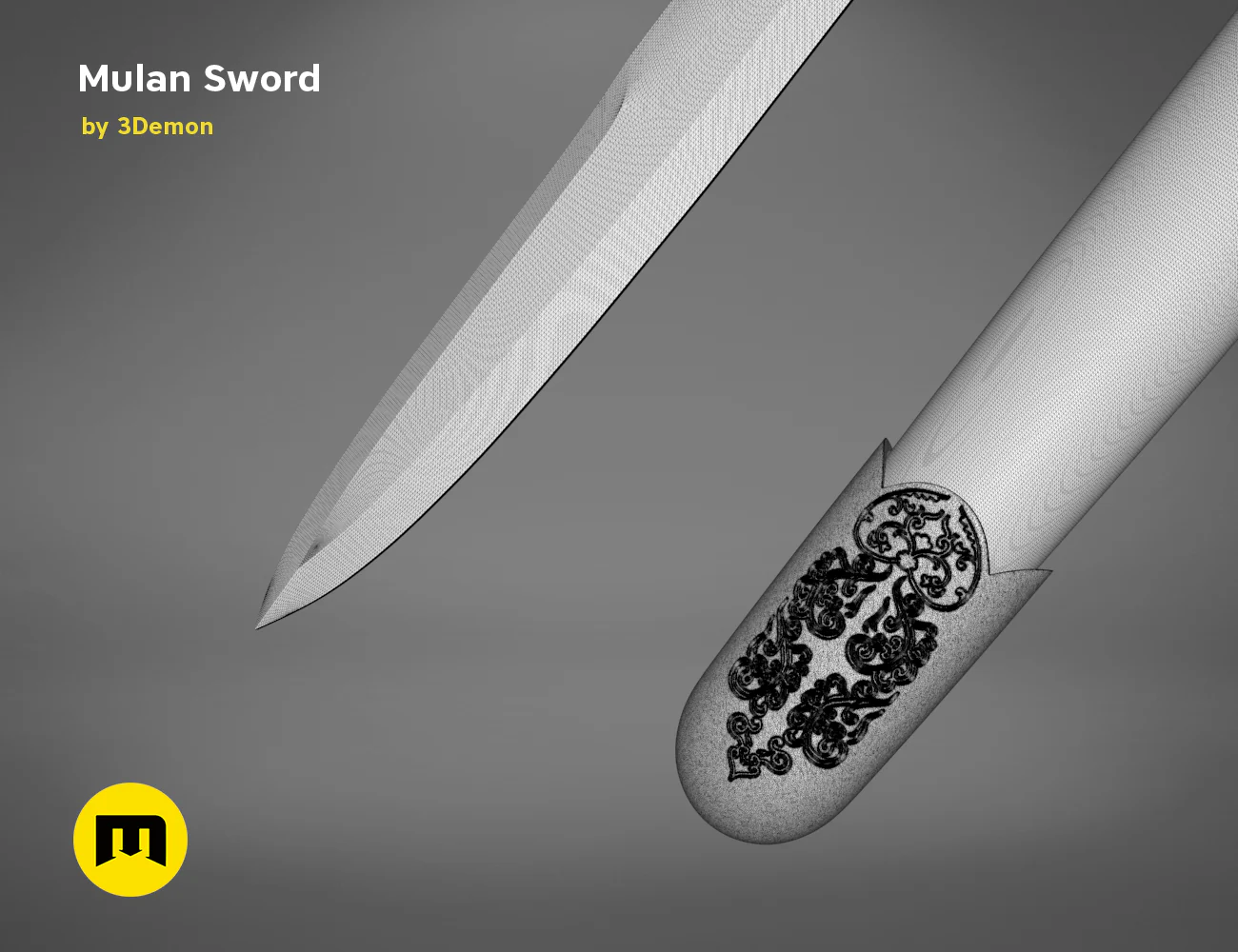

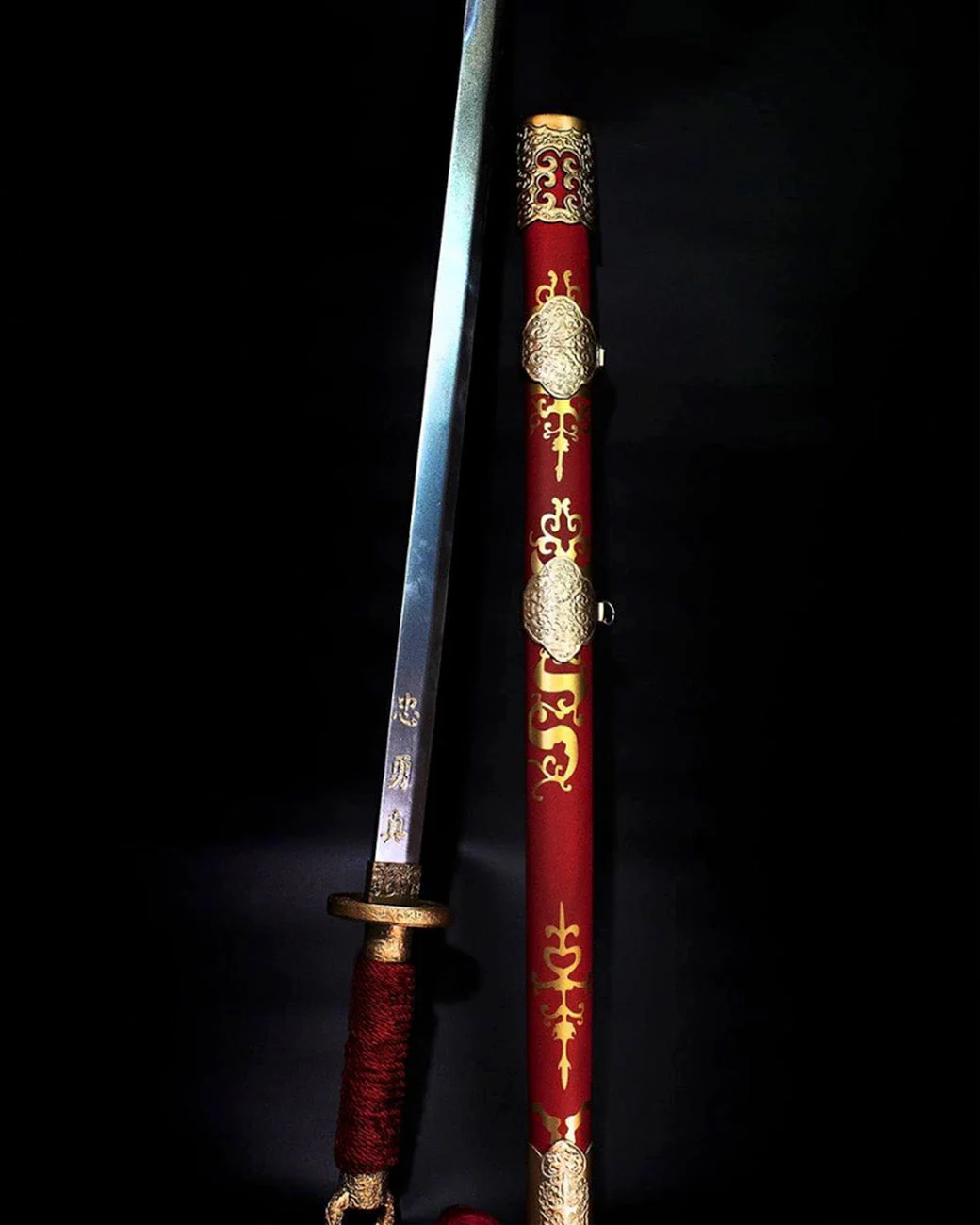

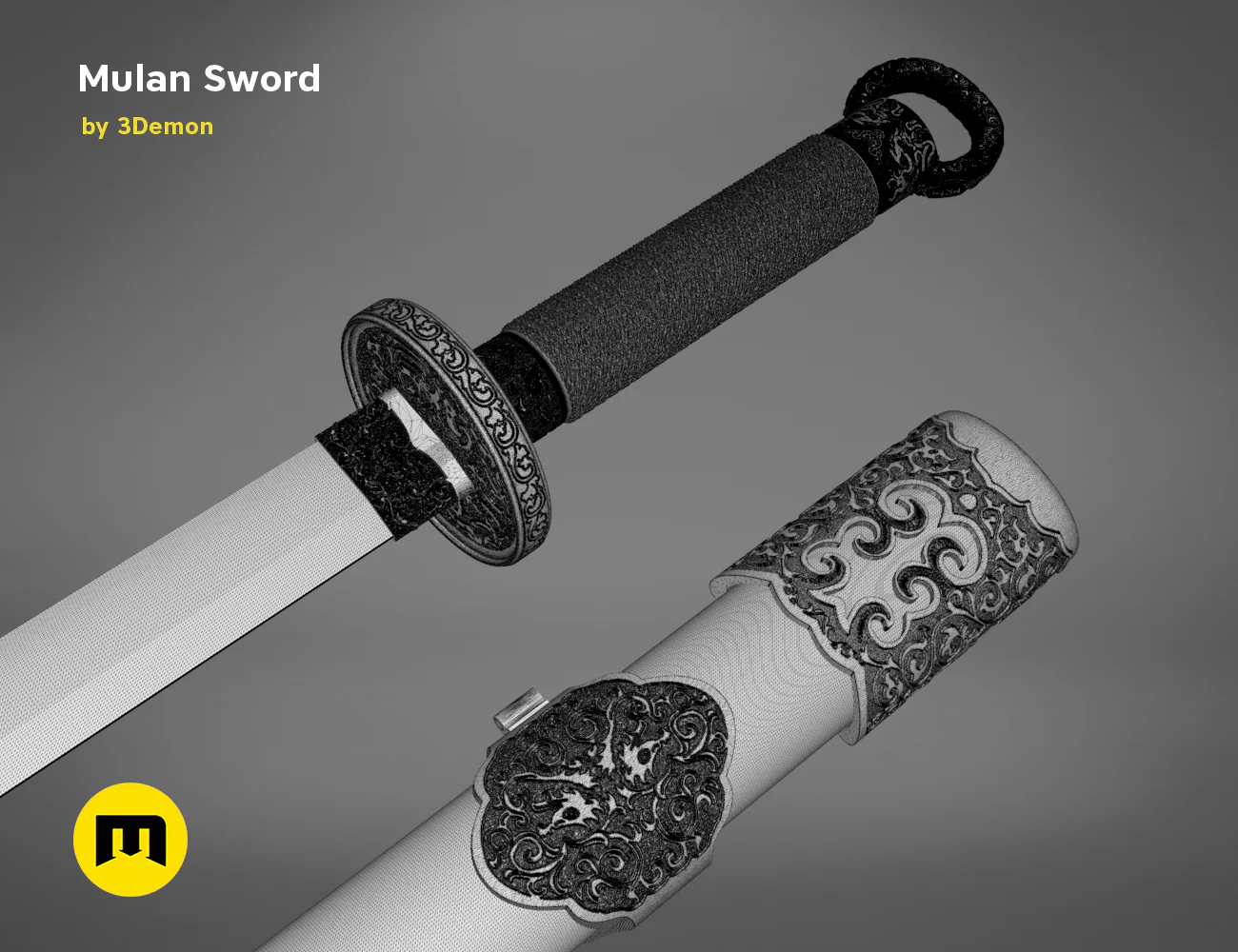

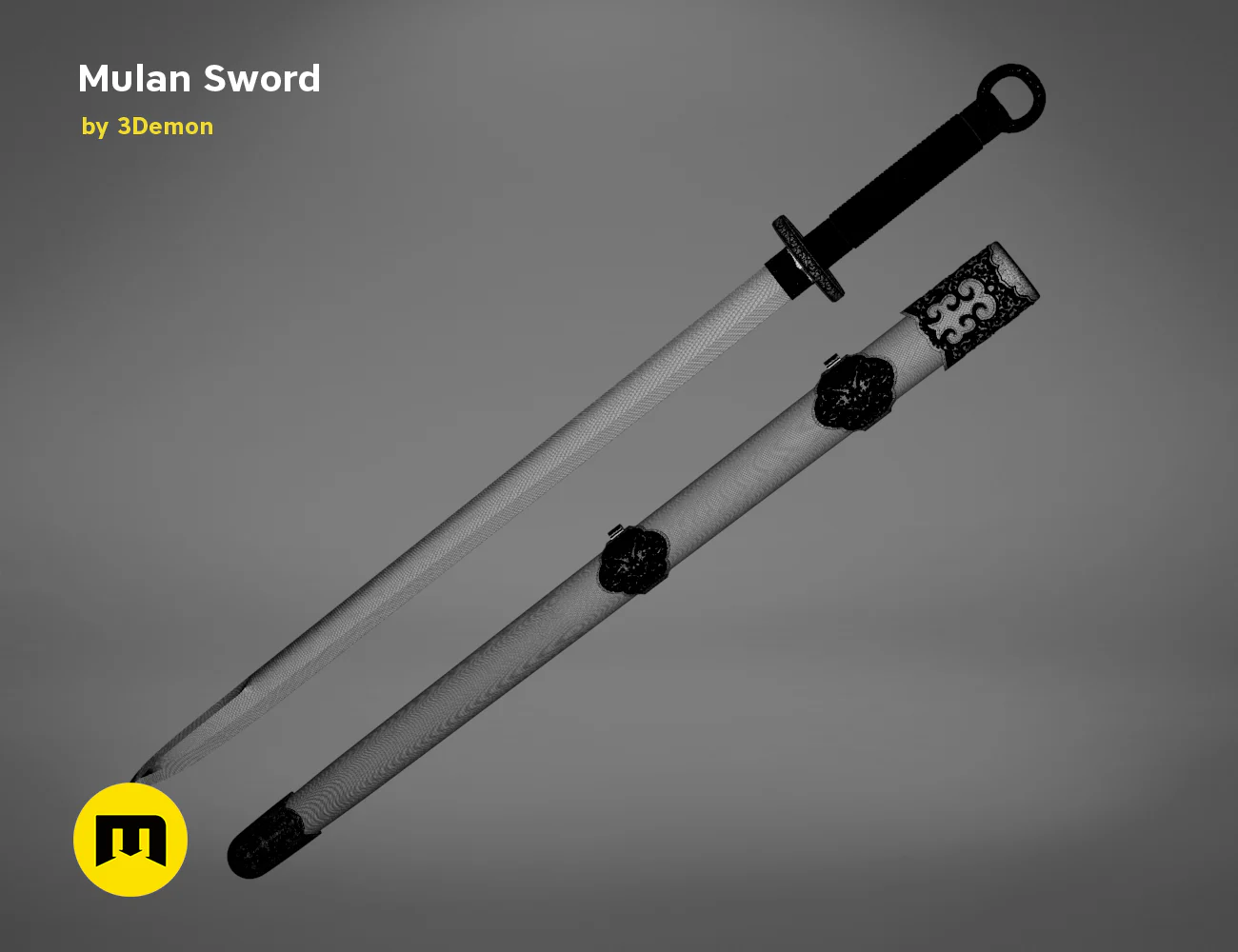

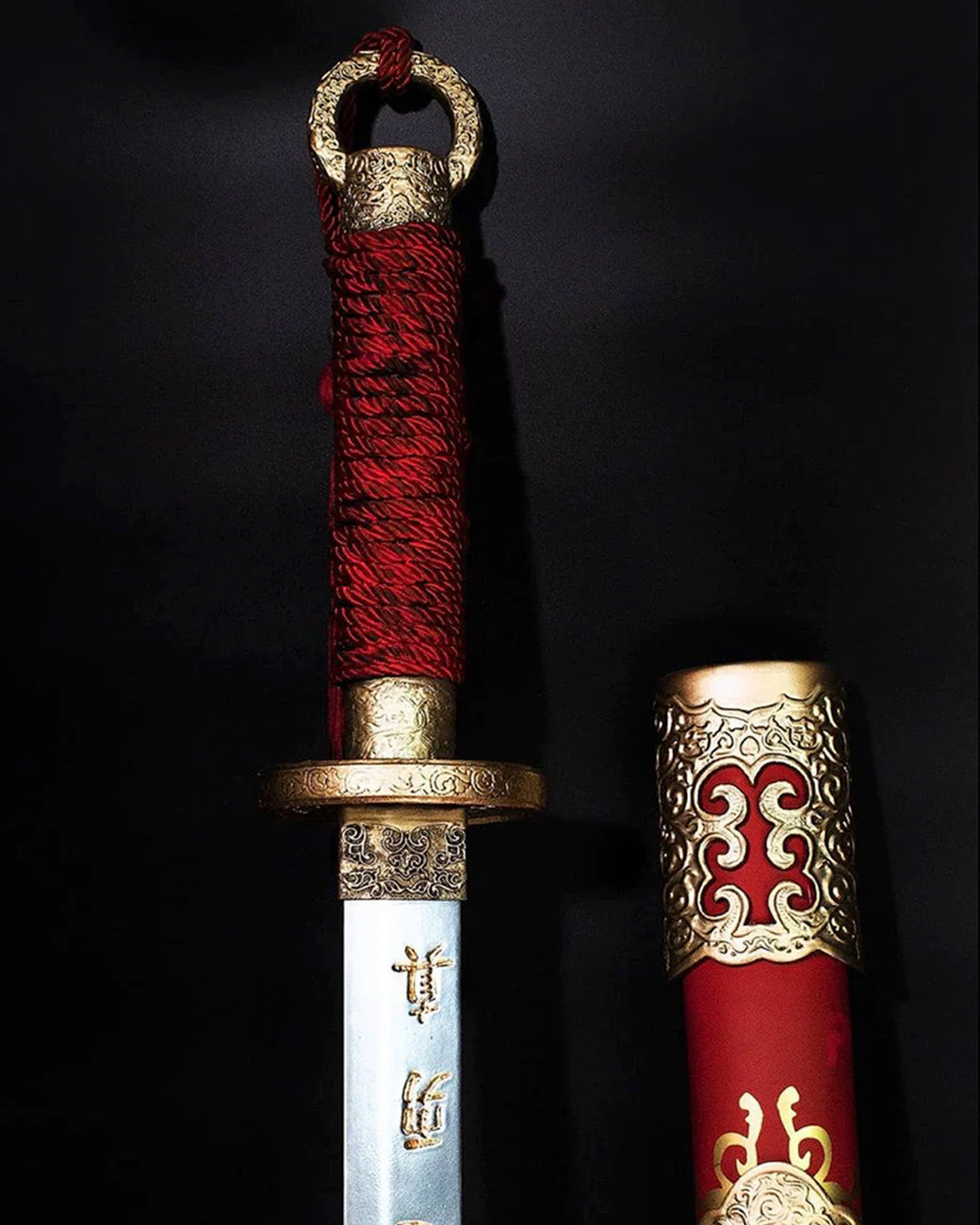

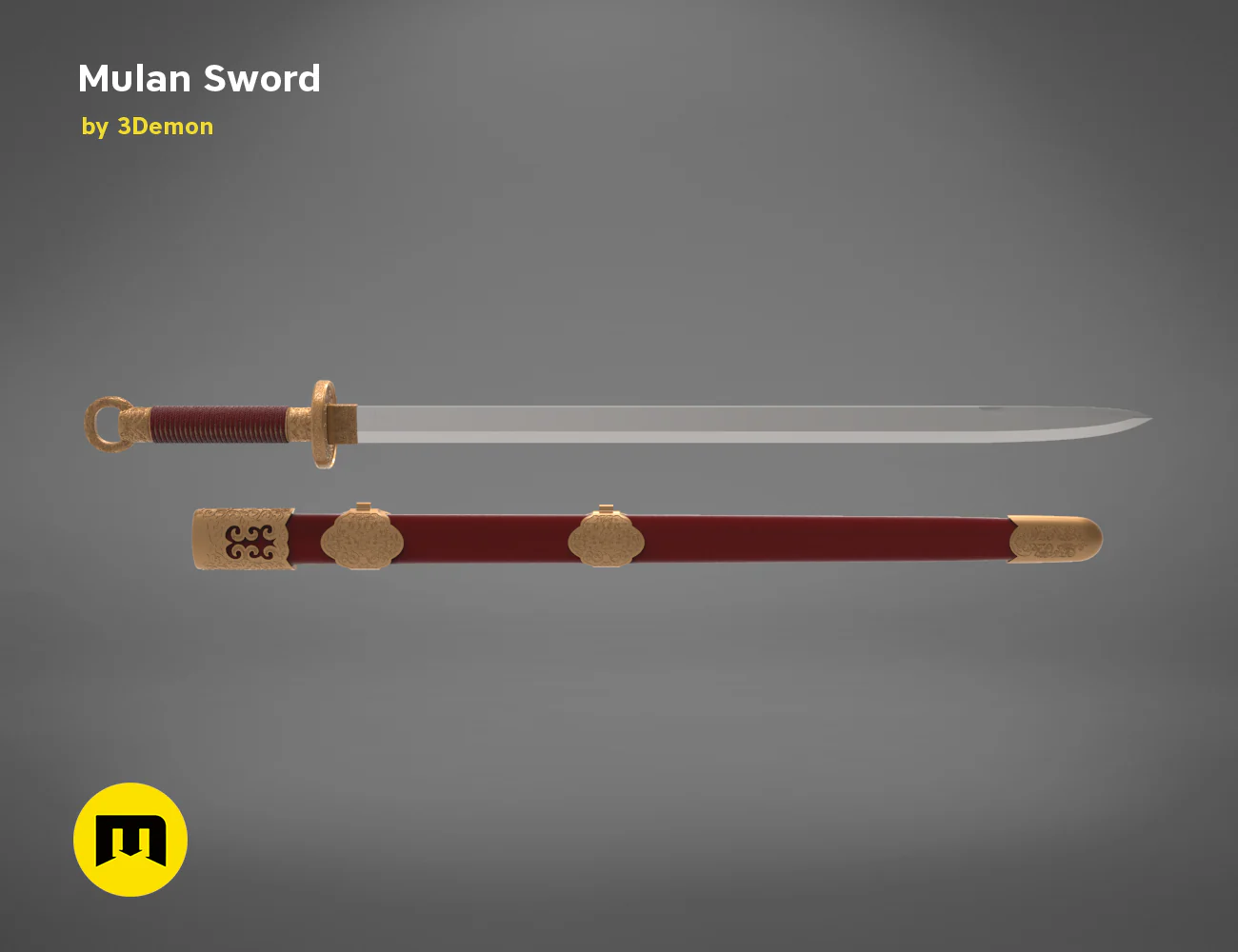

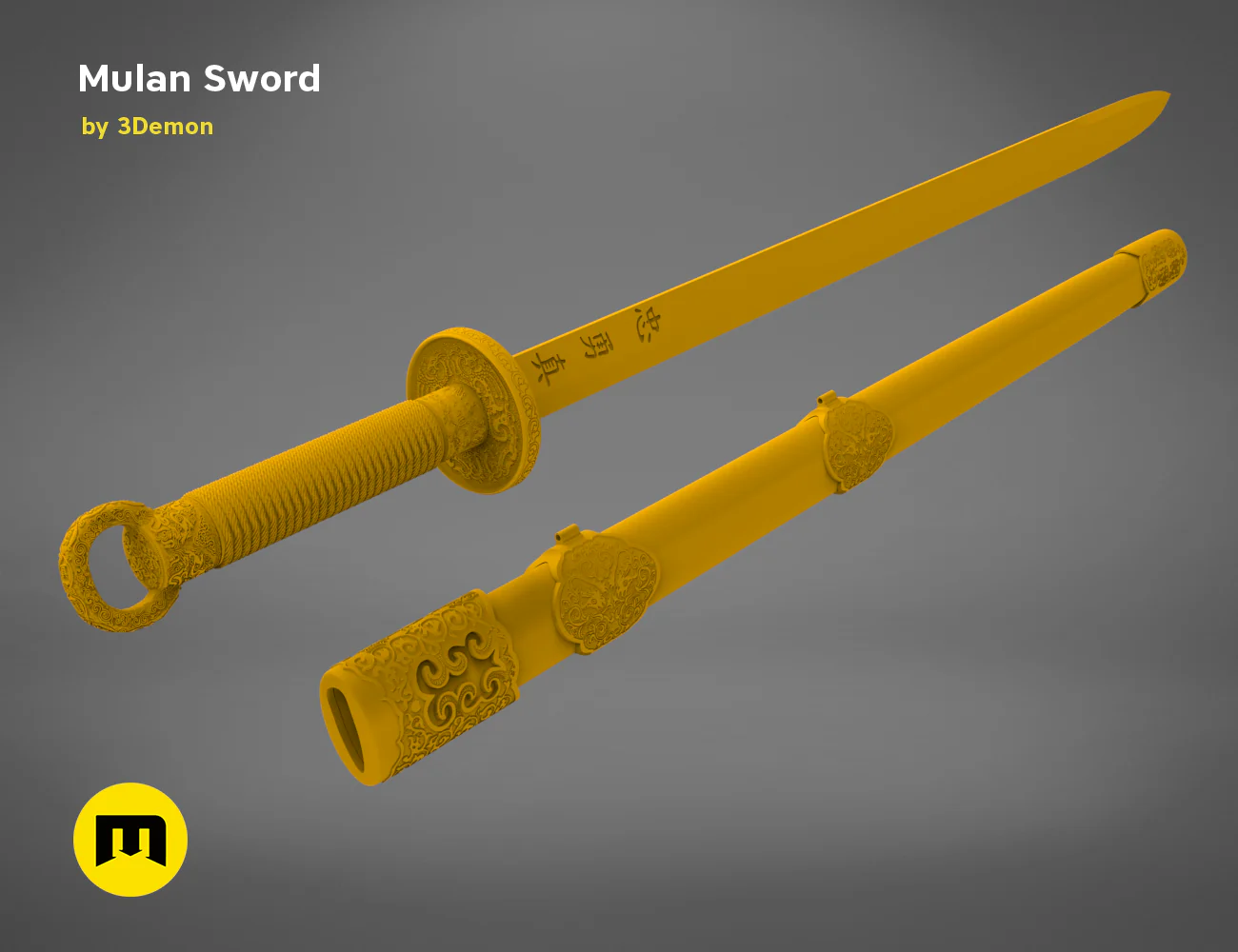

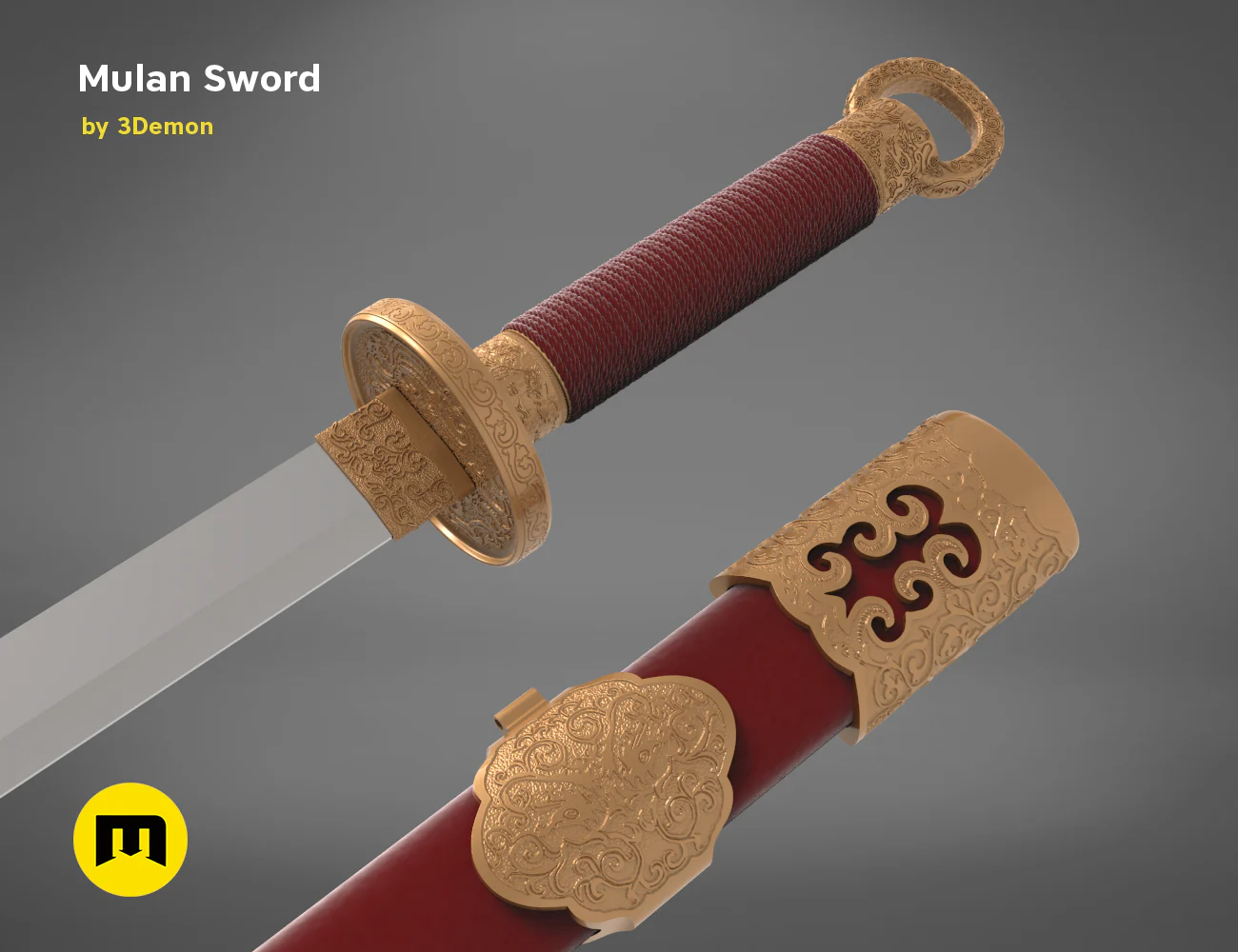

Mulan Sword and Sheath

This digital 3D printable model is a fan-made replica of Mulan's sword and sheath from the 2020 film - Mulan.
This model is a sword and sheath in real scale.

Files contain the complete sword and sheath in one piece (. OBJ) and also both models are cut into smaller pieces (. STL) designed for 3D printing.

📏 3D Model Dimensions

At 100% scale the sword dimensions are:

Width approx. 83 mm
Length approx. 1000 mm
Height approx. 83 mm

At 100% scale the sheath dimensions are:

Width approx. 65 mm
Length approx. 860 mm
Height approx. 36 mm

You can scale the model according to your needs.

🖨️ 3D Printing Settings

As the sword and sheath are quite big, it is meant to be post-processed. We recommend a layer height of 0.2 to 0.3 mm on FDM printers. All parts are aligned to the printing platform for easy manipulation. Most of the parts need minimal or no use of printing supports to save printing time and filament. For reliable printing, we also recommend setting a brim to the sword and sheat shell parts, because of their height and low thickness. It will ensure that the parts will not come off the printing platform during the printing process. Printing settings will vary greatly depending on your specific printer.
